Pacific Image Electronics Co., Ltd

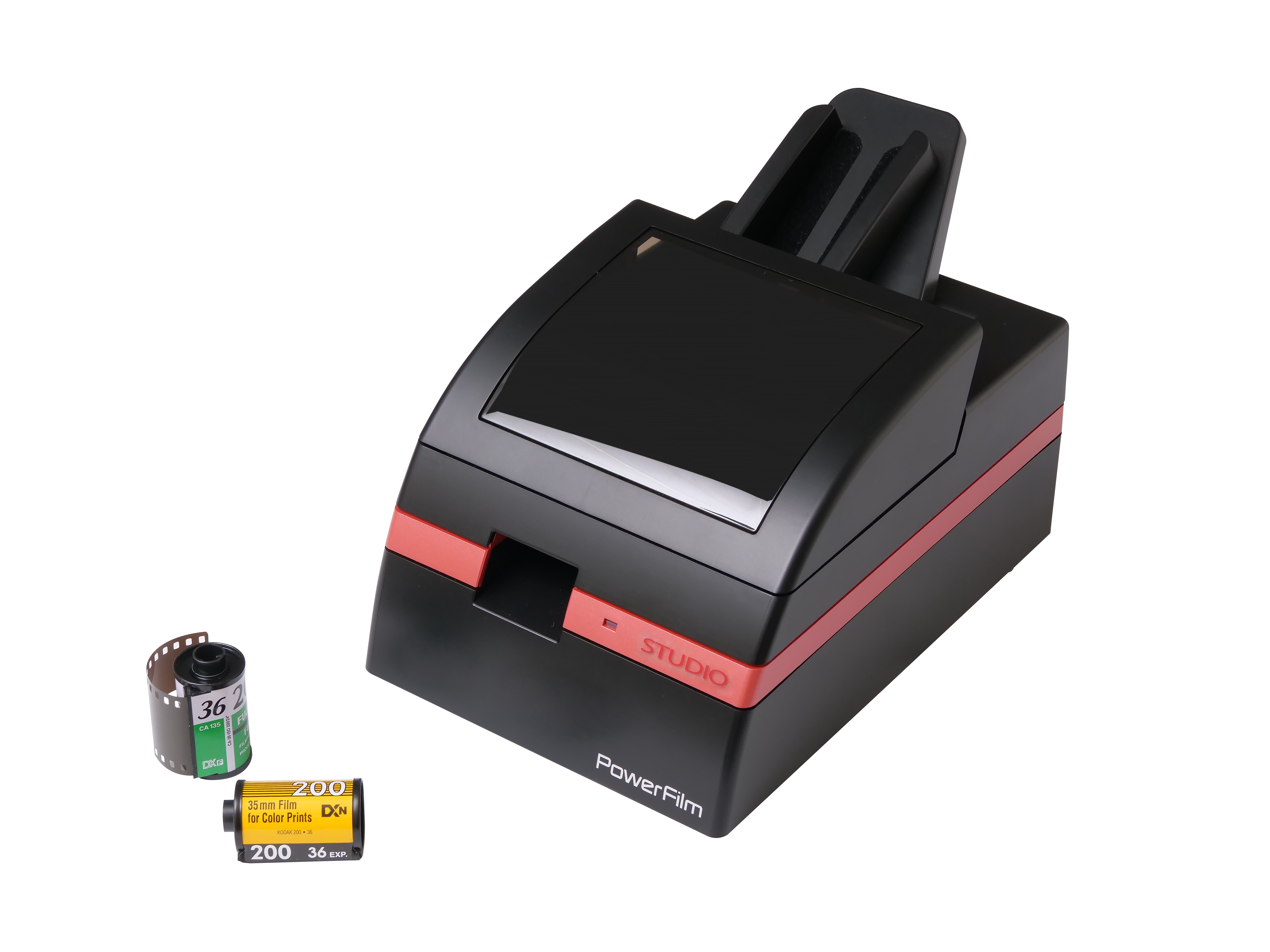

PowerFilm Studio

PowerFilm Studio


▪ Support connecting a maximum of 4 scanners
▪ Automatic Batch 35mm Filmstrip & Roll Film Scanning
▪ Up to 10 Film Strips, Maximum 60 Frames/Batch
▪ 7,200 dpi/48-bit Output
▪ 4.2 Dynamic Range
▪ Magic Touch - Dust/Scratch Removal
▪ Multipass Xposure - HDR
▪ Auto Color - Color Reconstruction
▪ Digital Noise Reduction
▪ Support Mac/Windows

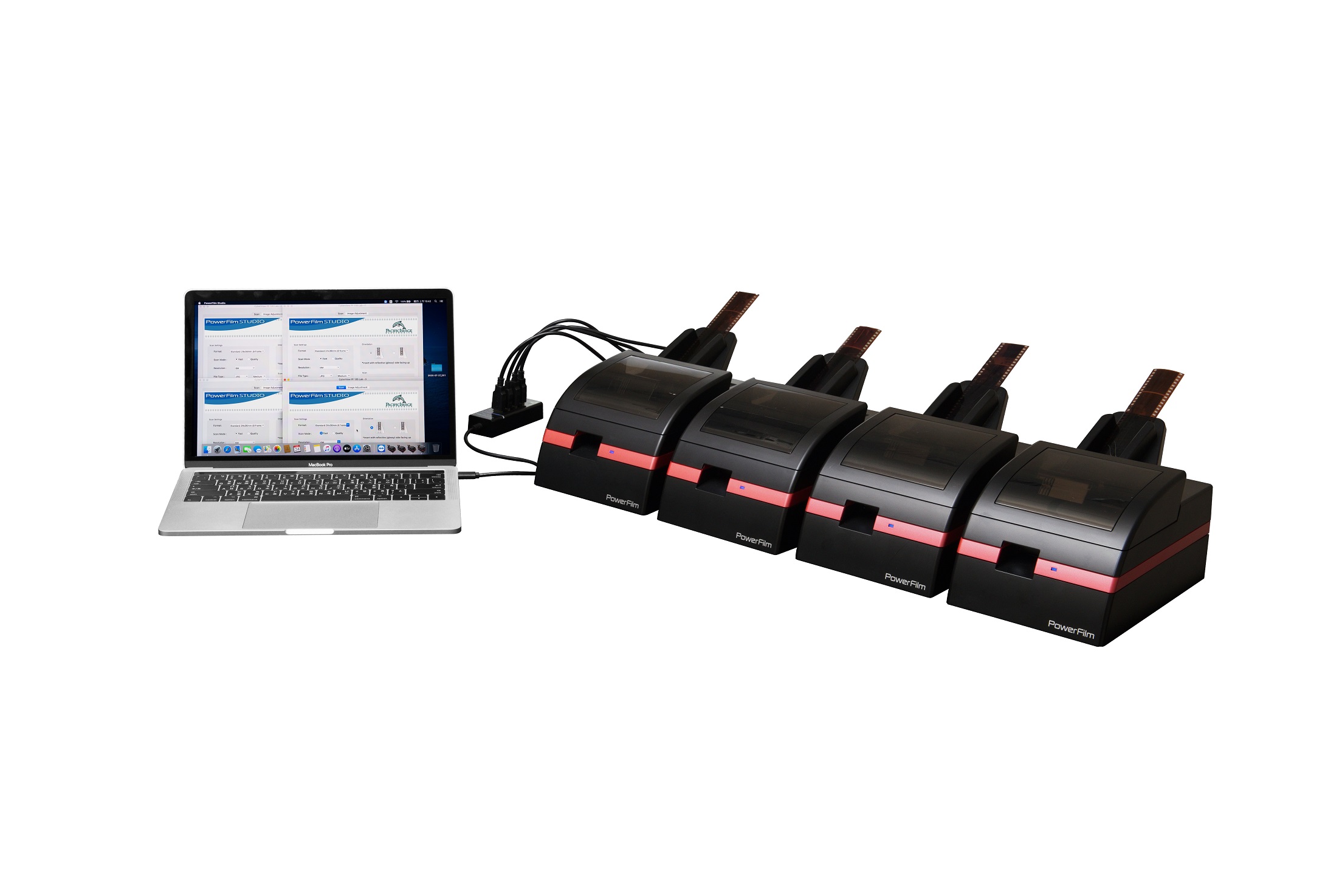

Support connecting a maximum of 4 scanners - PowerFilm Studio is an ideal solution for providing multi-scanning purposes that allow users to run up to 4 PowerFilm scanners with 1 computer at once.



Uncut roll film scanning – With the unique technique of auto film feader, PowerFilm Studio allow users to insert roll film continously, which is capable of scanning a maximum of 160 film frames (with 4 PowerFilm units, each unit scan an uncut roll film with a maximum of 40 frames).

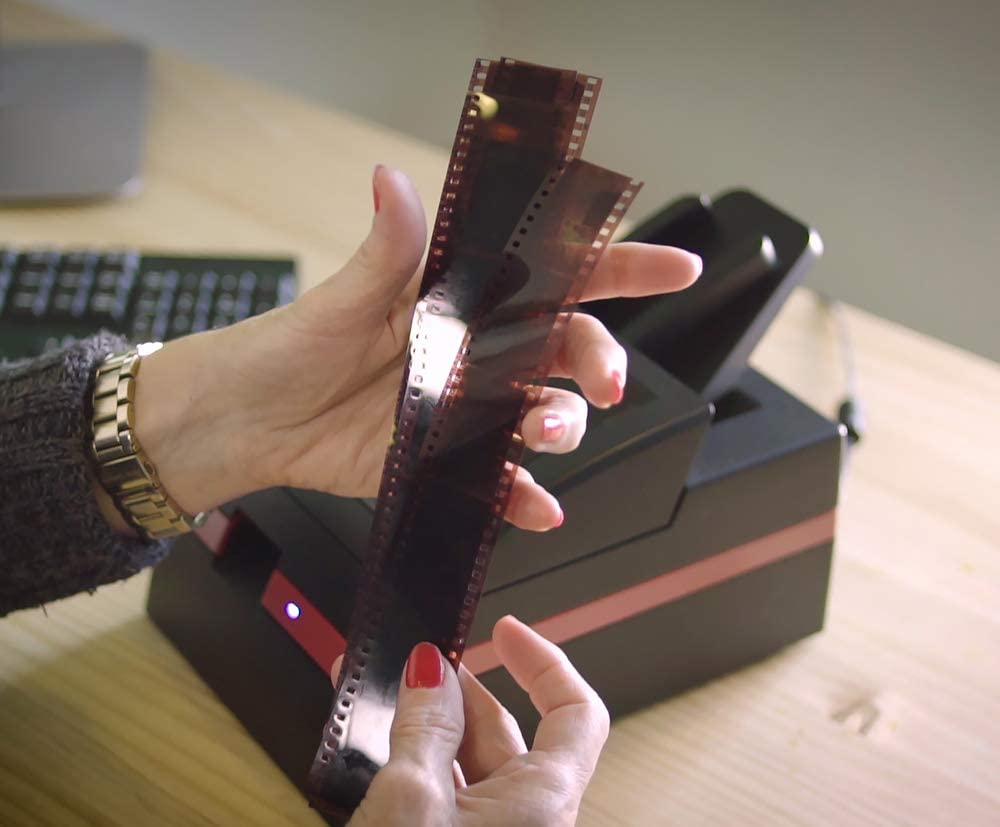

Automatic batch filmstrip scanning -  With the automatic batch scanning fuction, user can walk away during the scanning process instead of being tied to the computer. The max number of frames per batch scan are 240 frames (with 4 PowerFilm units, 10 film strips/batch, each strip has a maximum of 6 frames)






Scanning Media 135 Filmstrips & Roll Film
Resolution 7,200 DPI
Scan Speed Up to 24 sec/Frame @ 6MP
(speed may vary depending on the system)
Advanced Features   Auto Batch Filmstrips Scanning
Scan Capacity   Up to 10 film strips per batch
Data Capture 135 Negative, Positive, B/W Film Strip (2 to 6 frames per strip)
Light Source White & IR LEDs
Sensor Linear RGB CCD
Image File Format JPG, TIF
Interface USB 2.0
Power Supply

Input: AC 100-240V; 50/60 Hz

Output: 12V DC / 1.5A

Accessories • Wall-Mount Adapter
• USB 2.0 Cable
• Quick Installation Guide
Dimensions 232mm(L) x 157mm(W) x 128mm (H) (9.13 x 6.18 x 5.04 inch)
Net Weight 1.9kg (4.19lb)
OS

Windows 7/8/10/11

Mac OS 10.7 (minimum)

Hardware Requirements

Windows
• RAM: 4GB Minumum (8GB or more Highly Recommended)
• Hard Disk Free Space: 50 GB or more

Mac
• RAM: 4GB Minumum (8GB or more Highly Recommended)
• Hard Disk Free Space: 50 GB or more

Manual

Troubleshooting

Driver for Windows 7/8/10/11 64 bit

Firmware Update

Product Inquiry

    If you require technical support, please provide serial number from the bottom of the scanner
