Pacific Image Electronics Co., Ltd

PrimeFilm XEs super edition

PrimeFilm XEs super edition

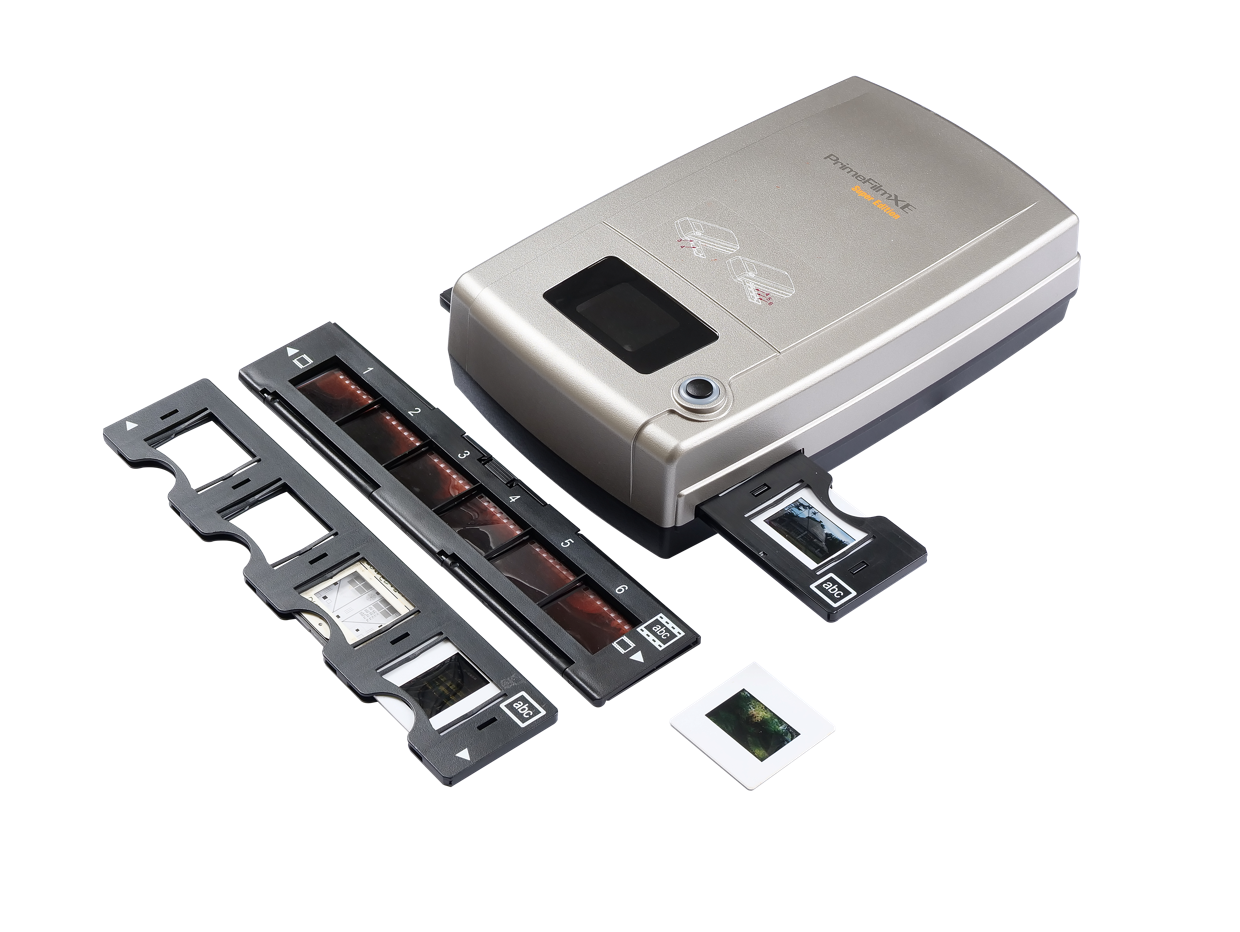

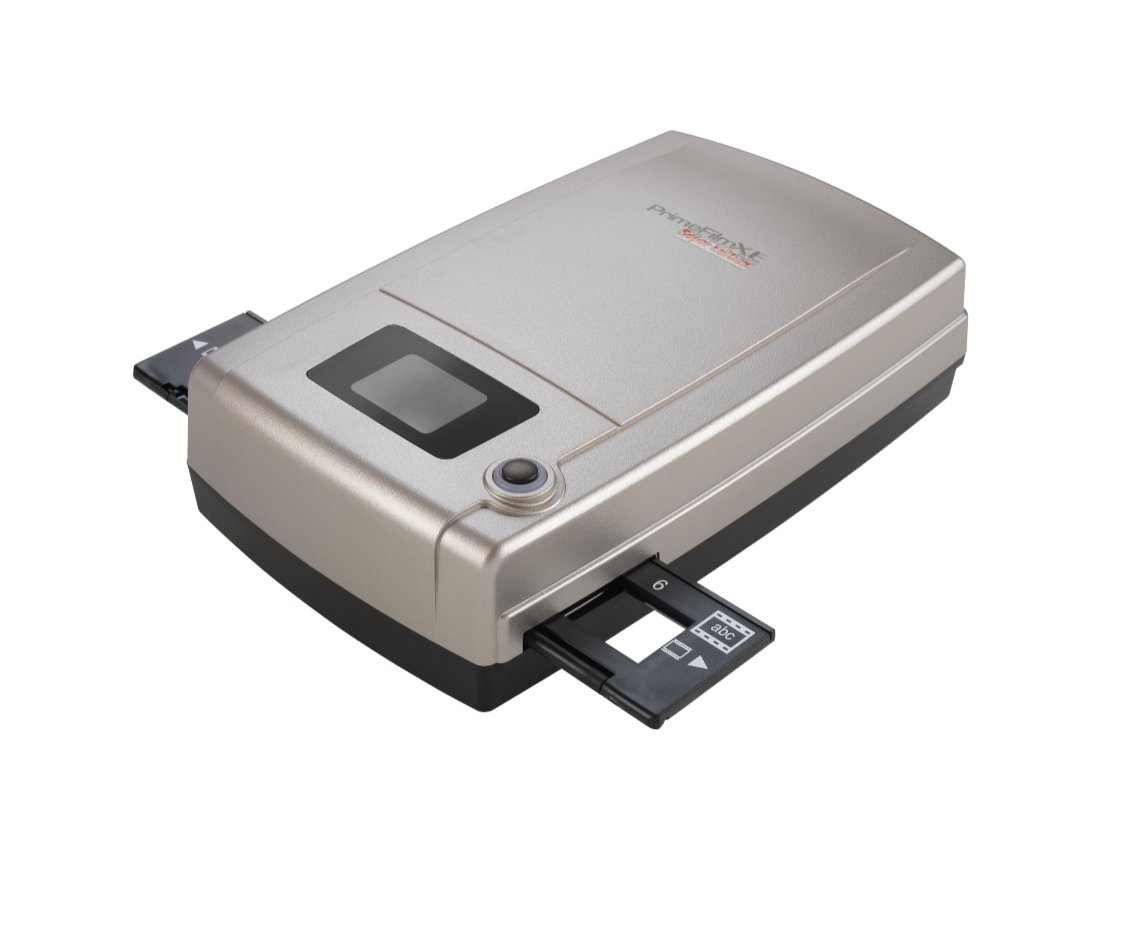

▪ 35mm Slide & Film Scanner
▪ Scan 35mm negative film & positive slides
▪ 10000 dpi/48-bit Output
▪ 4.2 Dynamic Range
▪ Magic Touch - Dust/Scratch Removal
▪ Multipass Xposure - Higher color accuracy
▪ Auto Color - Color reconstruction
▪ HDR /Digital noise reduction
▪ Support Mac/Windows

▪ Superior Image Quality - With 3.9 dynamic range and a resolution of 10,000 dpi, PrimeFilm XEs Film Scanner provides high quality scanning capability of 35mm slides and negative

▪ New Fast Scan Mode - Will offer 30% faster scan speeds

 Intelligent Automatic Functions - Bundles Lasersoft Imageing SilverFast SE 8, which makes the scan and imaging process much easier

▪ Infrared dust and scratch removal - Magic Touch technology eliminates flaws in film, such as dust or scratches, in the final image scan

▪ Higher color accuracy - Multipass Xposure technology scans each frame or slide three separate times for optimal sharpness and color accuracy





Minimum System Requirements

PC
• Intel P4 2 GHz or higher or AMD 2.0 GHz or higher XP w/ Service Pack 2, Windows Vista, Win 7 / Win 8 / Win 10 32 & 64 bit
• 1 GB RAM (1.5 or more highly recommended)
• 10 GB of available hard disk space (for software installation(more required for image storage)
• Color Monitor with 16-bit color video card
• 1024 x 768 monitor resolution
• Microsoft DirectX 9 compatible display driver

MAC
• Intel Core 2 Duo, speed 1.8 GHz, Memory/RAM: 1 GB, 667 MHz, DDR2 SDRAM
• MAC OS 10.13+ INTEL based processor, PowerPC NOT SUPPORTED
• 1 GB of RAM (1.5 or more highly recommended)
• 10 GB of available hard disk space (additional space required for software installation and more required for image storage)
• 1024 x 768 monitor resolution (QuickTime 7 software required for multimedia features)

Resolution 10000 DPI
Dynamic Range   3.9
Light Source White and infrared LED array
Sensor Linear array color CCD
Data Conversion 48 bits per pixel (color mode)
16 bits per pixel (grayscale mode)
Scanning Buffer 2MB
Scanning Area 24.3mm x 36.5mm (H x W)
Interface USB 2.0
Power Supply Output: 12V DC / 1.25A
Dimensions 275(L) X 167(W) X 80(H) mm (10.8 x 6.57 x 3.15 inch)
Net Weight 1kg (2.21lb)
OS

Windows Vista, Win 7/8/ 10

Mac OS 10.5 (minimum)

Hardware Requirements

Windows

• Processor: Intel P4 2 GHz or higher or AMD 2.0 GHz or higher
• RAM: 1GB (1.5 or more highly recommended)
• Hard Disk Free Space: 10 GB or more



Mac

• Processor: Intel Core 2 Duo, speed 1.8 GHz
• RAM: 1 GB, 667 MHz, DDR2 SDRAM
• Hard Disk Free Space: 10 GB or more
