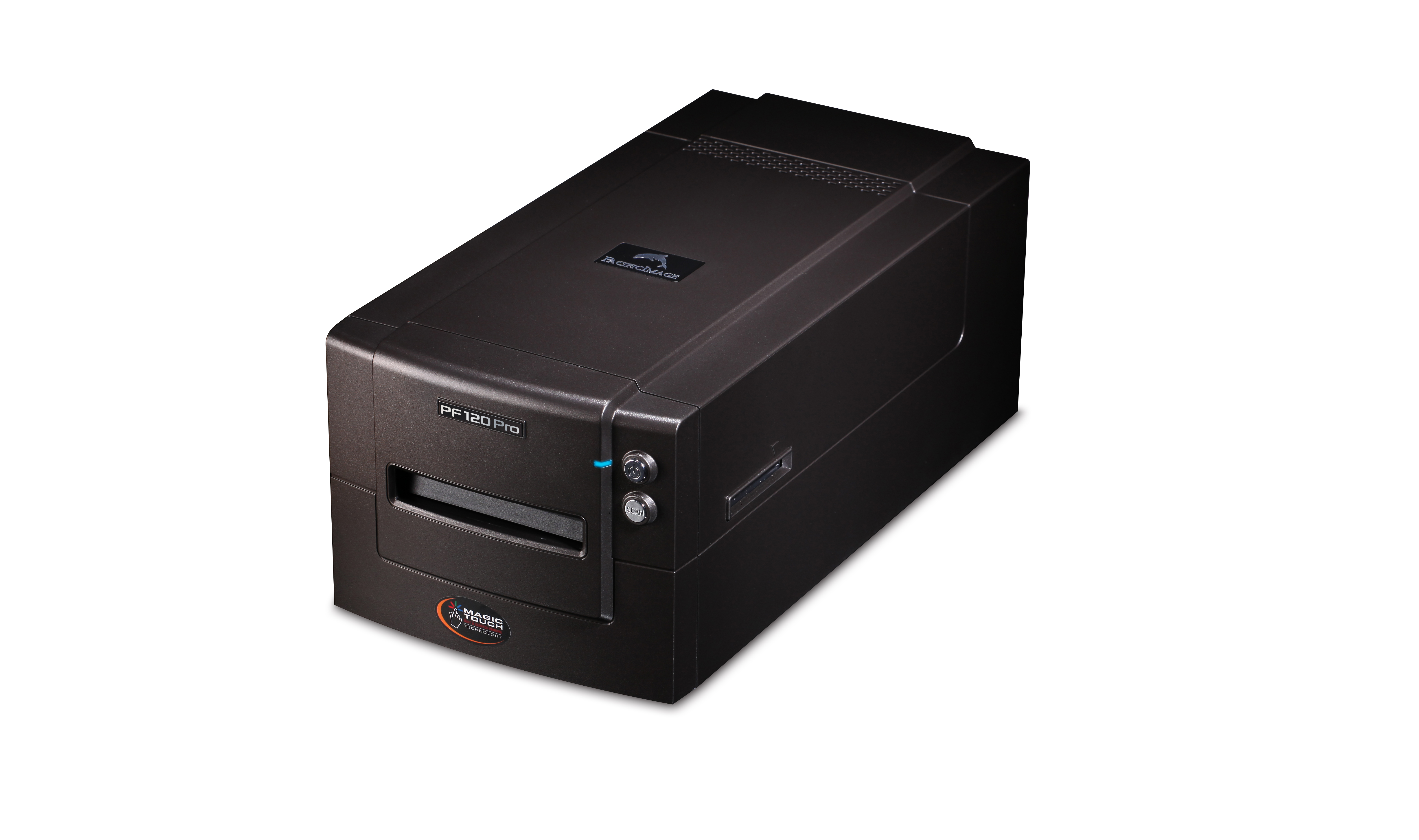

PrimeFilm 120 Pro

PrimeFilm 120 Pro


• Supports a wide variety of industry-standard film
(negative and positive) sizes - including 35mm,
120/200, 6 x 4.5cm, 6 x 6cm, 6 x 7cm, 6 x 9cm
and 6 x12cm
• Superior quality, 3-line CCD sensor
• 48-bit, 3200dpi optical resolution
• Automatic dust & scratch removal

With the new PrimeFilm 120 Pro, not only do we have the same functionality and quality you have come to expect from our dedicated 35mm film and negative scanners, but we also included a wide variety of professional film formats. It includes our unique and patented technology, Magic Touch, for automatic dust and scratch removal from films. An advanced 3-line CCD sensor and fast scanning speeds - even at a gorgeous 3200dpi optical resolution - takes this scanner to new heights and make this model the one for scanning a broad range of film sizes.





Minimum System Requirements

PC
• Operating System 32 & 64 bit Windows XP/Vista/Win 7/Win 8/Win 10, USB 2.0
• CPU Intel P4 2 GHz or higher or AMD 2.0 GHz or higher
• RAM 1 GB minimum
• Hard Disk free space 10GB or greater

MAC
• Operating System MAC OS 10.13+ INTEL based processor, PowerPC NOT SUPPORTED
• CPU Intel Core 2 Duo, speed 1.8 GHz
• Memory/RAM 1 GB, 667 MHz, DDR2 SDRAM




Scanning Media

Media: Negatives and positives, in color and monochrome.

35mm film: 1 strip of 1-6 frames (max.)

35mm slides: 1- 4 slides with mounts.

Medium-format film: 1-2 frames (6 x 4.5),1-2 frames (6 x 6),

1 frame (6 x 7, 6 x 8, 6 x 9, 6 x 12 )

Resolution 3200 DPI
Sensor 3 line R, G & B linear CCD sensor
Light Source White and Infrared (IR) LEDs
Output Full color or gray scale at 8 or 16 bits per channel
A/D conversion 16 Bits per channel (i.e. 48-bit)
Interface USB 2.0 ONLY (USB 1.1 not supported)
Power Supply Output: 12V DC / 1.25A
Dimensions 400 (L) x 200 (W) x 160 (H) mm (15.7 x 7.8 x 6.3 inch)
Net Weight 5.6 kg (12.3lb)
OS

Windows XP (SP2), VISTA, Windows 7/8/10

Mac OS 10.5 (minimum)

Hardware Requirements

Windows

• Processor: Intel P4 2 GHz or higher or AMD 2.0 GHz or higher
• RAM: 1 GB Minumum
• Hard Disk Free Space: 10 GB or more



Mac

• Processor: CPU Intel Core 2 Duo, speed 1.8 GHz
• RAM: 1GB, 667 MHz, DDR2 SDRAM
