PowerSlide X

PowerSlide X


▪ Auto Batch Scan 135 Mounted Slides
▪ 10,000 dpi/48-bit Output
▪ 4.2 Dynamic Range
▪ Magic Touch - Dust/Scratch Removal
▪ Multipass Xposure - Higher color accuracy
▪ Auto Color - Color reconstruction
▪ DNR - Digital Noise Reduction
▪ Support Mac/Windows

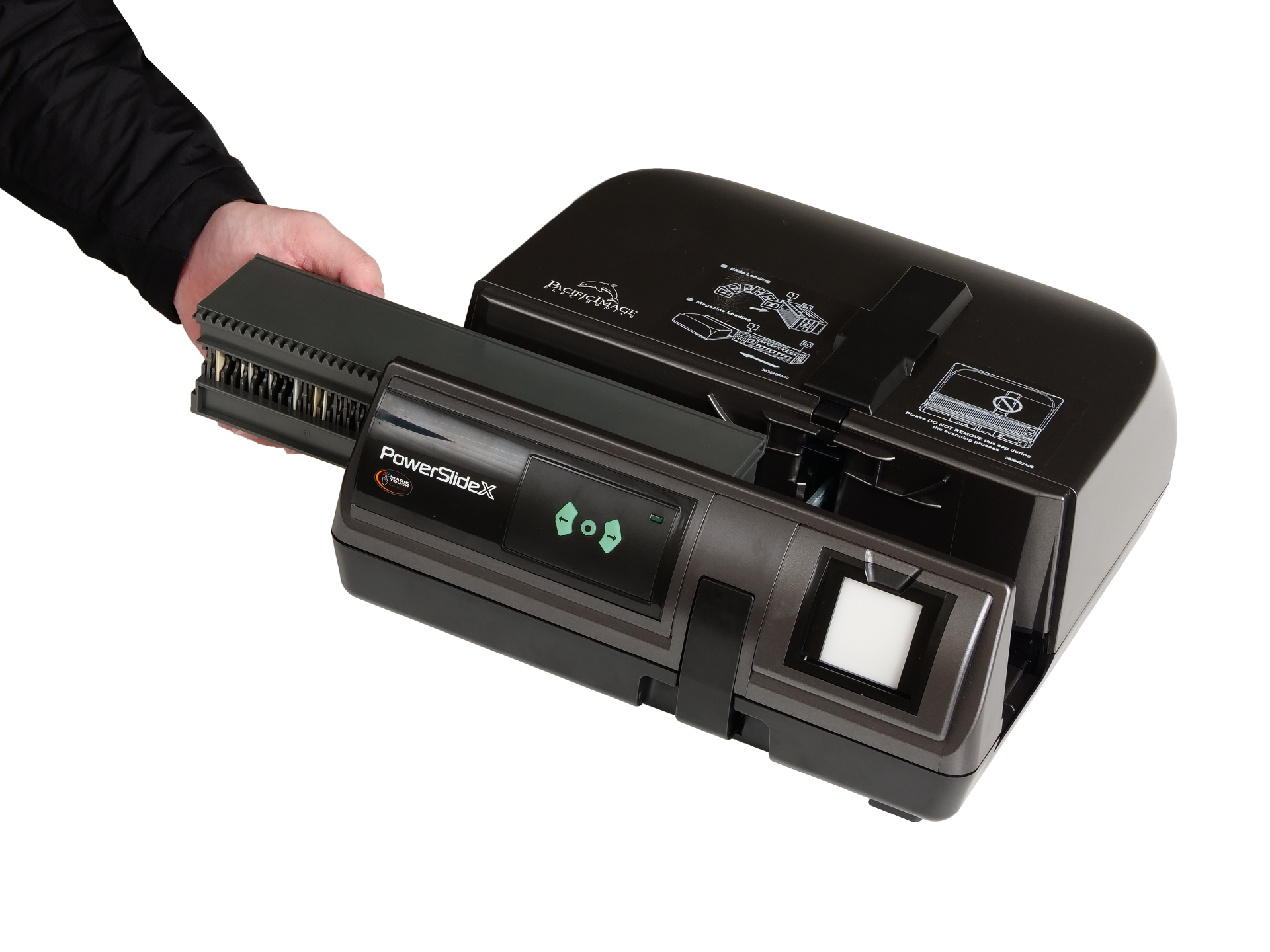

▪ Auto Batch Slide Scanning - With the included slide magazine, the PowerSlide X is capable of non-stop scanning up to 50 slides at a time.



▪ Superior Image Quality - With advanced 10,000dpi optical resolution, 48-bit data conversion, Dmax 4.2 dynamic range, PowerSlide X captures and digitizes a crisp and vivid image from the slide.

 User friendly interface

    1. Quick Slide Viewer - The PowerSlide X has built-in a mini light panel which allows users to conveniently view the slide             image before scanning.

    2. Manual Front Control Panel - Users can advance or reverse the slide tray by pressing the navigation buttons

    3. One scan button - By pressing the one scan button, users can experience faster scanning process.

▪ Infrared dust and scratch removal - Magic Touch technology eliminates flaws in film, such as dust or scratches, in the final image scan.

▪ Optimal dynamic range - Multipass Xposure technology scans each frame or slide multiple times to enhance the detail of dark area without sacrificing the bright area.

▪ Higher color accuracy - Accurate color adjustment, resulting in vibrant images with optimal brightness, contrast and saturation.

▪ Digital noise dectection - Isolate and manage noise/grain in both highlight and shadow areas without sacrificing image detail.

▪ Fading Film Color Correction - As the films are placed in a long period of time, it will become fading. We have unique technology to correct this issue.





Minimum System Requirements

PC
• Windows 7/8/10/11 32&64 bit
• 4 GB RAM (8 GB or more highly recommended)
• 50 GB of available hard disk space for software installation (more required for image storage)
• Color Monitor with 16-bit color video card
• 1024 x 768 monitor resolution

Mac
• Mac OS X 10.7 (minimum), PowerPC NOT supported
• 4 GB of RAM (8 GB or more highly recommended)
• 50 GB of available hard disk space (additional space required for software installation and more required for image storage)
• 1024 x 768 monitor resolution



Where to buy ?

You can buy our scanners from our resellers including Adorama, Amazon and B&H

You can buy our accessories from our direct shop: Scanacedirect

For more reseller information, please contact us via the product inquiry form below.



Scanning Media 135 Mounted Slides
Resolution 10,000 DPI
Dynamic Range   4.2
Advanced Features   Auto Batch Slide Scanning (Max: 50 slides at a time)
User friendly interface

• Slide Viewer

• One Button Scan

• Manual Front Control Panel

Light Source White and Infrared LED Array
Sensor Linear Array Color CCD
Data Conversion

48 Bits per Pixel (color mode)

16 Bits per Pixel (grayscale mode)

Image File Format JPG, TIF
Scanning Area 37mm x 37mm (H x W)
Interface USB 2.0
Power Supply

Input: AC 100-240V; 50/60 Hz

Output: 12V DC / 1.5A

Accessories • 50 Slide Magazine
• Wall-Mount Adapter
• USB 2.0 Cable
• Quick Installation Guide
Dimensions 300 (L) x 290 (W) x 125 (H)mm (11.8 x 11.4 x 5 inch)
Net Weight 2.5Kg (5.51lb)
OS

Windows 7/8/10/11

Mac OS 10.7 (minimum)

Hardware Requirements

Windows
• RAM: 4GB Minumum (8GB or more Highly Recommended)
• Hard Disk Free Space: 50 GB or more

Mac
• RAM: 4GB Minumum (8GB or more Highly Recommended))
• Hard Disk Free Space: 50 GB or more







Manual

Troubleshooting

Driver for Mac OS 10.7 or higher

Driver for Windows 7/8/10/11 32 & 64 bit

Firmware Update

Product Inquiry

    If you require technical support, please provide serial number from the bottom of the scanner
